Frac Landing Sleeve

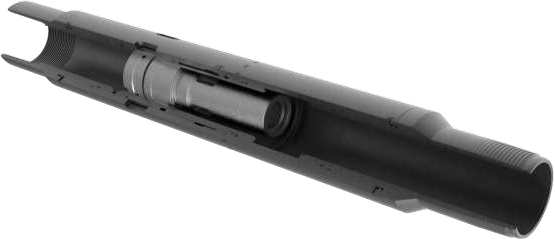

A frac sleeve whose body houses a valve unit fixed against premature actuation by shear screws.
Advantages
- guaranteed actuation at the set pressure;
- stable operation at any depth;
- reusable;
- high tightness.
Specifications
- activation pressure: up to 13 MPa
- maximum internal overpressure: up to 70 MPa
- total circulation-port area: 1680 mm²
- size range: 102/146; 114/168(178); 140/219(245)
Application area and experience
The frac landing sleeve is a key piece of fracturing equipment that provides communication between the in-casing and behind-casing space when the required pressure is created. It ensures efficient and safe enhanced-oil-recovery operations.
