SIBBURMASH Group of Companies

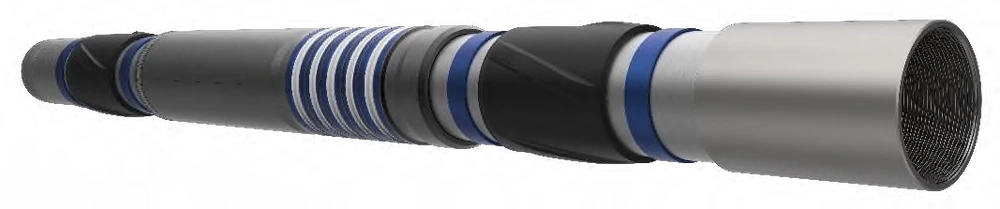

Isolation Packer

A metal external casing isolation packer with metal-to-metal sealing that isolates inter-casing cross-flows in gas wells.

Advantages

  • protection system against premature setting during circulation;
  • no trapped pressure after setting;
  • prevents sustained casing pressure (SCP).

Specifications

  • pressure: up to 700 atm
  • temperature: up to 120 °C
  • size range: 178/245; 245/340; 273/340
  • validation: V0
  • certification: QS.S100.4-10-2022-1

Application area and experience

  • pressure: up to 700 atm
  • temperature: up to 120 °C
  • size range: 178/245; 245/340; 273/340
  • validation: V0
  • certification: QS.S100.4-10-2022-1
