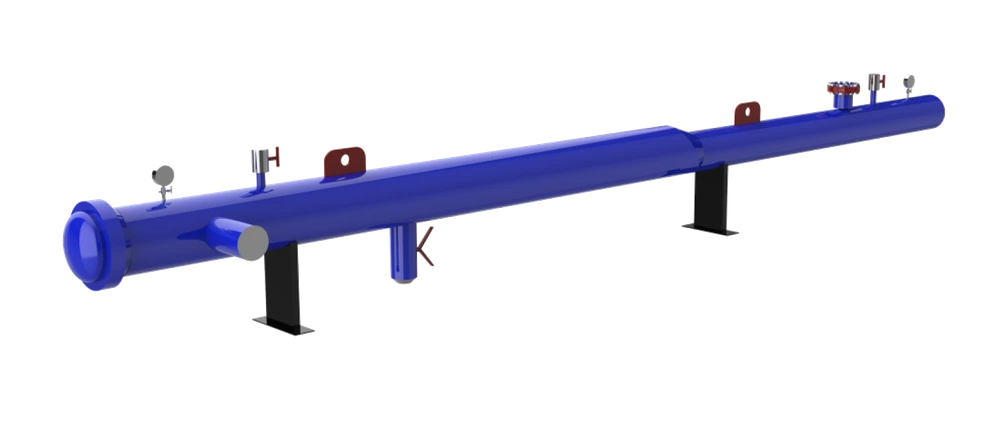

SOD Chambers
SOD Chambers are designed for cleaning, diagnostics, hermetic sealing and passage of separation devices on the linear section of pipelines, loopings, and branch pipes with DN from 80 to 1400 mm inclusive and nominal pressure up to 16.0 MPa.
ADVANTAGES
- ensures reliability and safety of operation throughout the entire service life;
- provides the possibility of technical inspection and control;
- allows complete emptying and cleaning of equipment;
- ensures purging, repair and operational control of metal and connections;
- complies with explosion-proof requirements of groups IIA T2; T3.
TECHNICAL SPECIFICATIONS
- device diameter range: from 80 to 1400 mm;
- working medium density: not more than 1300 kg/m³;
- working medium temperature: from -20 to +100 °C;
- working pressure: not more than 16.0 MPa;
- group of explosive gases and vapors according to GOST IEC 6007-14-2013: IIA;
- group of explosive mixtures according to GOST 31610.20-1-2020: T2; T3.
APPLICATION AREA AND EXPERIENCE
SOD Chambers are used in the oil and gas production industry on the linear section of pipelines for cleaning, diagnostics and hermetic sealing of separation devices. Due to their characteristics and reliability, they are effectively used on main pipelines and complex technological schemes of oil and gas enterprises.
