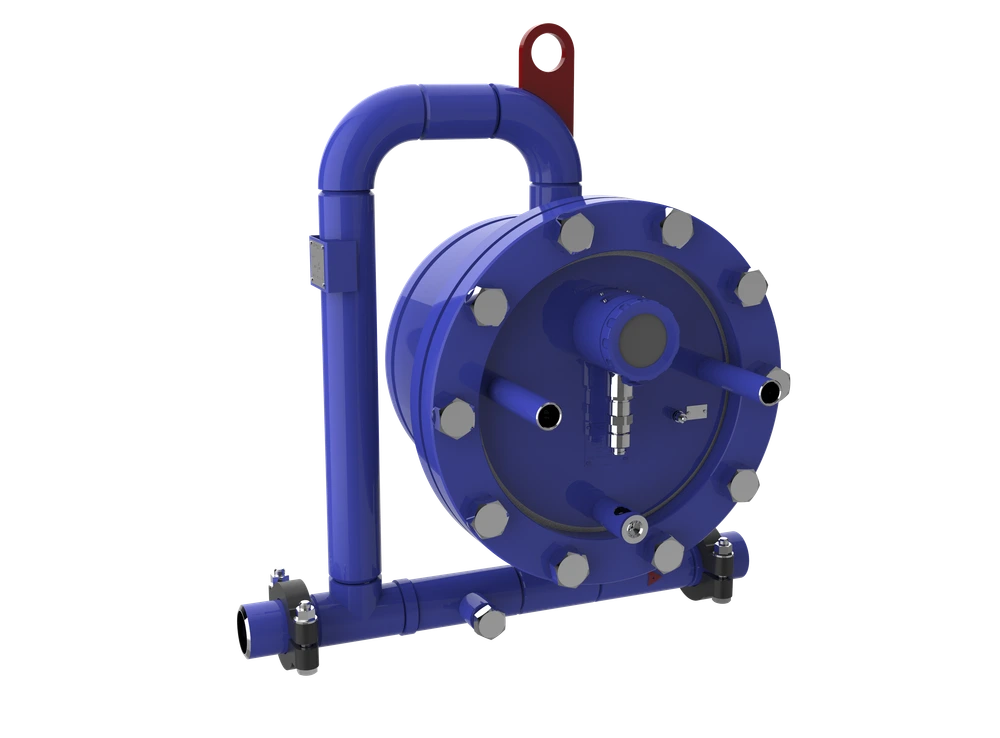

Bucket Meters for Wellbore Fluid "BMWF"
Bucket-type meters for wellbore fluid BMWF are used at metering stations and technological pipelines of oil and gas production enterprises and other industries, and are designed for measuring the mass flow rate and total mass of wellbore fluid.
ADVANTAGES
- autonomy and reliability — fully prepared for operation in field conditions: built-in thermoregulation and safety systems;
- repairability — modular design allows quick maintenance;
- compliance with standards — certified, meet GOST requirements and Russian Federation technical regulations in the field of metrology, industrial and environmental safety;
- electronic converters can be positioned at the top or bottom of the measurement unit according to customer requirements;
- the meter can be additionally equipped according to customer requirements with: manual sampler, moisture meter, limit level alarm indicator (LLAI), pressure gauge, pressure transducer, temperature transmitter.
TECHNICAL SPECIFICATIONS
- mode of operation: continuous;
- ambient temperature: from −50 to +50 °C;
- relative humidity of ambient air: up to 98%;
- pipeline pressure: 4.0 / 6.3 MPa;
- wellbore fluid temperature range: from +0 to +130 °C;
- kinematic viscosity of oil-gas-water mixture under measurement conditions: not exceeding 1000 mm²/s;
- gas content (volume fraction): not less than 2%;
- power supply: direct current voltage from 9 to 30 V, alternating current 50 Hz from 187 to 242 V;
- power consumption: not exceeding 5 VA;
- digital interface: RS-485, MODBUS RTU;
- output signals: closing contact (pulsed);
- standard sizes: BMWF-30 / 60 / 120 / 210 / 420;
- limits of permissible relative measurement error: not exceeding ±2.5%.
FIELD OF APPLICATION AND EXPERIENCE
BMWF meters are used at metering stations and technological pipelines of oil and gas production enterprises and other industries. Designed for measuring the mass flow rate and total mass of wellbore fluid in continuous mode of operation. Measurement results are presented in digital form with flow rate counting resolution of 0.001 t/day.
