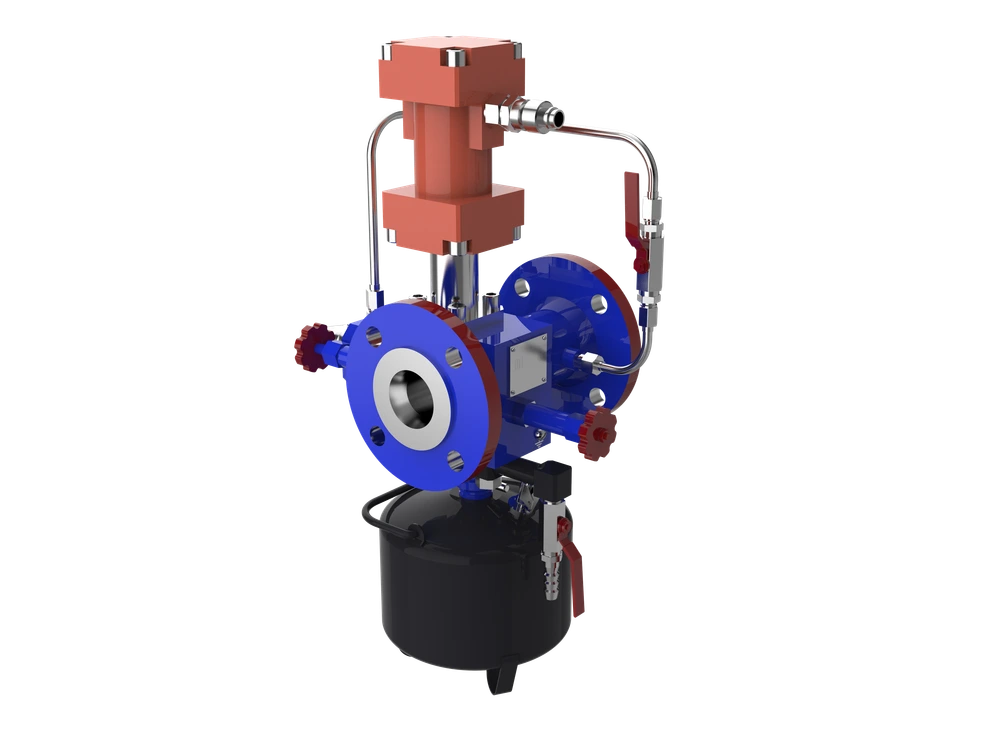

Oil and Petroleum Products, CHGS Automatic Sampler AP-P-1
ADVANTAGES
- universality — compatible with various automated control systems;
- sampler control can be implemented via software control unit or via RS 485;
- autonomy and reliability — fully prepared for operation in field conditions;
- repairability — modular design allows quick maintenance or replacement of components;
- compliance with standards — certified, meet GOST requirements and Russian Federation technical regulations.
TECHNICAL SPECIFICATIONS
- temperature of sampled product: from +2 to +90 °C;
- pipeline pressure: from 0.2 to 6.3 MPa;
- density: from 750 to 990 kg/m³;
- salt content: up to 5000 mg/l;
- mass fraction of mechanical impurities: up to 0.5%;
- mass fraction of sulfur compounds: up to 3%;
- kinematic viscosity: up to 300×10⁻⁶ m²/s;
- mass fraction of paraffin content: up to 7%;
- sampler voltage: 220 V;
- digital interface: RS-485, MODBUS.
FIELD OF APPLICATION AND EXPERIENCE
Field of application — oil and gas production industry. The sampler has an explosion-proof level with explosion protection type “flameproof enclosure ‘d'” in accordance with GOST IEC 60079-1-2013 and explosion protection marking 1Ex db h IIB T4 Gb X. Designed for use in explosive zones of indoor and outdoor installations according to PUE Chapter 7.3 classification.

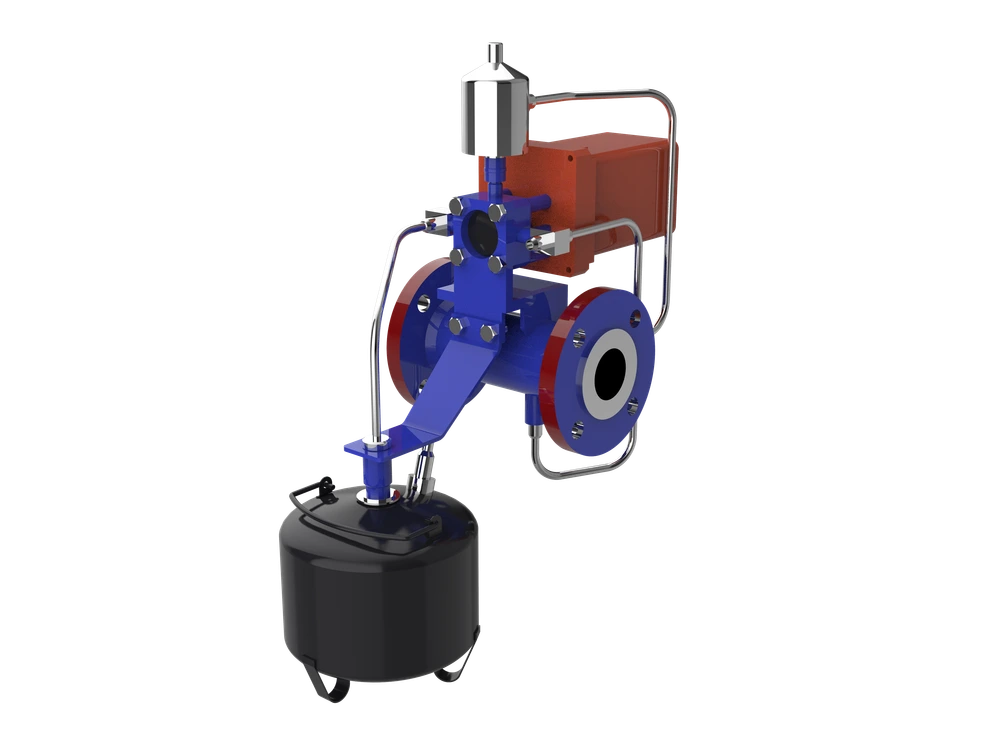

Oil and Petroleum Products, CHGS Automatic Sampler AP-A-2 (Variation 2)
ADVANTAGES
- universality — compatible with various automated control systems;
- autonomy and reliability — fully prepared for operation in field conditions;
- repairability — modular design allows quick maintenance or replacement of components;
- compliance with standards — certified, meet GOST requirements and Russian Federation technical regulations in the field of metrology, industrial and environmental safety.
TECHNICAL SPECIFICATIONS
- mass fraction of water content: up to 98%;
- kinematic viscosity: up to 120×10⁻⁶ m²/s;
- temperature: from +5 to +90 °C;
- paraffin content: up to 9%;
- mass fraction of mechanical impurities: up to 0.5%;
- mass fraction of sulfur compounds: up to 3.5%;
- density: up to 1000 kg/m³;
- power supply: 380/220 V (AC);
- power consumption: not exceeding 25 W;
- digital interface: RS 485, MODBUS RTU;
- nominal bore diameters of pipeline: 40–1200 mm;
- cylinder capacity: 3–8 l.
FIELD OF APPLICATION AND EXPERIENCE
Field of application — oil and gas production industry. The sampler has an explosion-proof level with explosion protection type “flameproof enclosure ‘d'” in accordance with GOST IEC 60079-1-2013 and explosion protection marking IEx db h IIB T4 Gb according to GOST 31610.0. Designed for use in explosive zones of indoor and outdoor installations.

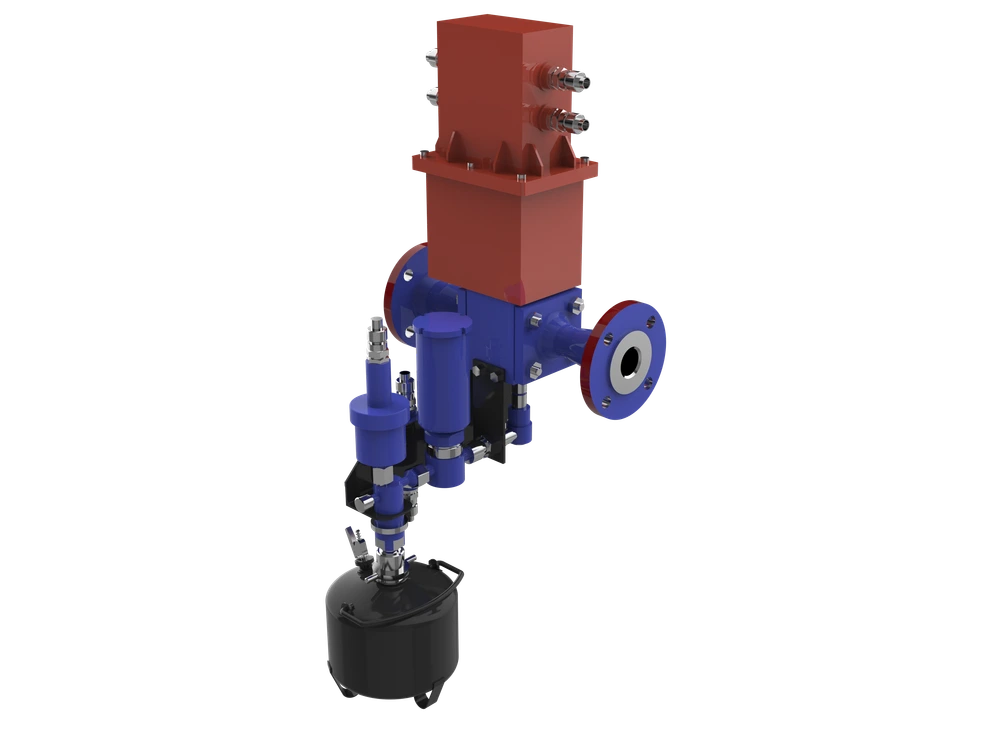

Oil and Petroleum Products, CHGS Automatic Sampler AP-P-3
ADVANTAGES
- no stagnation zones, no capillary tubes and taps;
- the notch sampling method does not create pressure drop in the pipeline;
- sample collection of product flowing by gravity, without excess pressure;
- universality — compatible with various automated control systems;
- autonomy and reliability — fully prepared for operation in field conditions;
- repairability — modular design allows quick maintenance or replacement of components;
- compliance with standards — certified, meet GOST requirements and Russian Federation technical regulations;
- increased reliability of the collected point sample due to more complete collection across the flow cross-section.
TECHNICAL SPECIFICATIONS
- kinematic viscosity: up to 8000 cSt;
- temperature: from -20 to +120 °C;
- mass fraction of mechanical impurities: up to 1.0%;
- mass fraction of sulfur compounds: at pressure up to 1.7 MPa — 4%, at pressure up to 6.3 MPa — 1%;
- maximum medium pressure: up to 6.3 MPa;
- minimum medium pressure: 0 MPa (product movement by gravity);
- direct current voltage: 24±5% V (without operator panel);
- number of cycles: from 1 to 50,000 (or without limitation);
- digital interface: RS-485, MODBUS.
FIELD OF APPLICATION AND EXPERIENCE
Field of application — oil and gas production industry. The sampler has an explosion-proof level with explosion protection type “flameproof enclosure ‘d'” in accordance with GOST IEC 60079-1-2013 and explosion protection marking IEx db h IIB T4 Gb according to GOST 31610.0-2019. Designed for use in explosive zones of indoor and outdoor installations.
